OBSTACLE DETECTION AND AUTOMATIC LIMIT SETTING

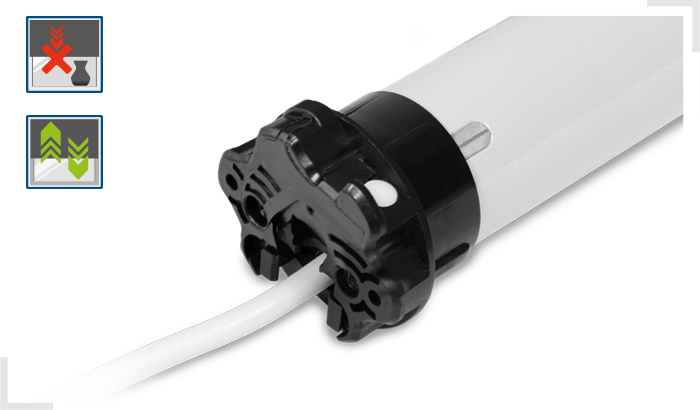

XQ50 SENSE ZIP

OBSTACLE DETECTION AND AUTOMATIC LIMIT SETTING

FEAUTURES:

  • AC Motor
  • Diameter Ø 45mm
  • Up and down directions syncronized while setting the limits
  • Noiseless soft brake
  • Easy limit setting via the setting button on the head
  • Downwards high sensitive obstacle detection
  • Reverse function when an obstacle is detected
  • Overload protection upwards and ice protection built-in technology
  • Automatic electronic limit setting
  • Motor reset and deactivation of the mode by using the normal switch
  • Smooth stop against the upper limit
  • Power saving
  • Easy and safe wiring connection

SENSE ZIP motor requires installation of the cassette as upper torque stop of the bottom bar and specific adapters. The correct selection of the torque according to the shutter size and weight is essential for the motor overload protection.
  • Quiet motors.
  • The electronic sensor stops the motor if any obstacle is detected.
  • The clear and reliable signal of the encoder guarantees an endless stability and accuracy of the limits position.
230 VAC 50 HzTorque (Nm)Speed (rpm)
XQ5J617617
XQ5J10171017
XQ5J20172017
XQ5J30173017
XQ5J40174017
XQ5J50145014
